Adopting the transmission method of stepper motor plus synchronous belt, it has the advantages of low cost and low noise!
Flexible matching of different glue supply/control systems; realize dispensing of different products with different processes

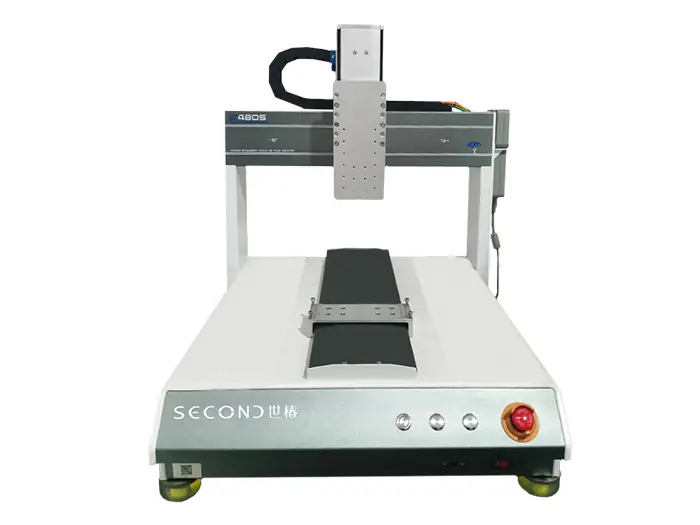

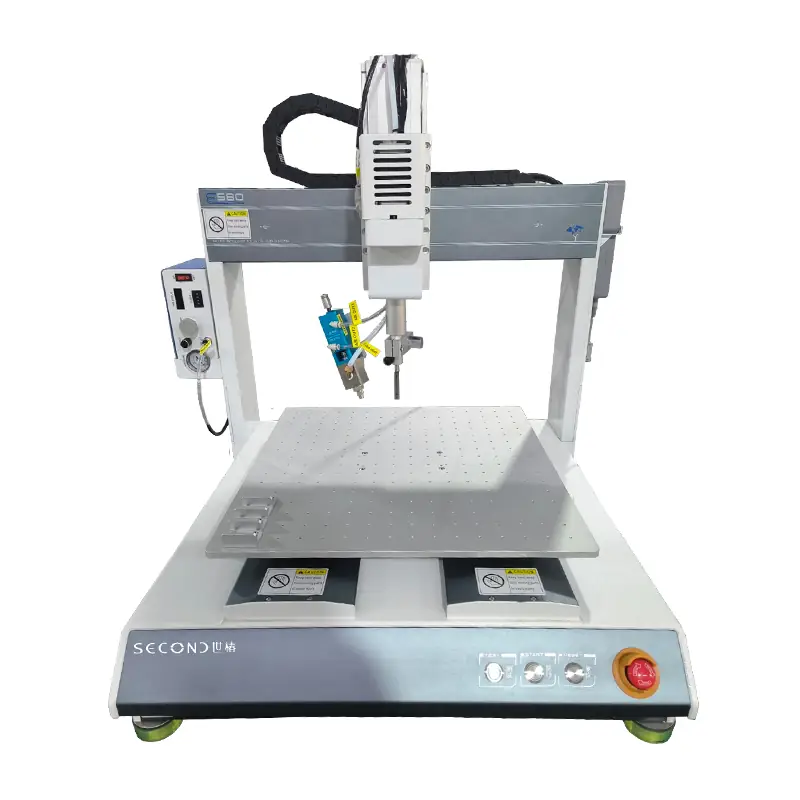

Detailed display diagram

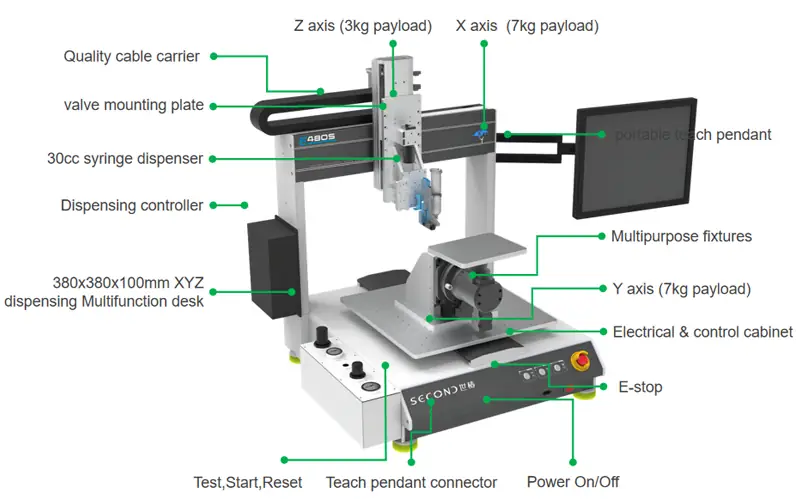

Structure diagram
Product Description

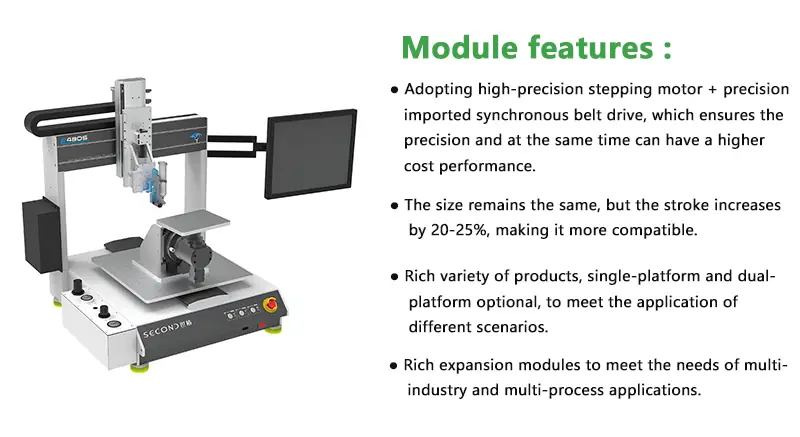

Module features
Dispensing process:
Commonly used glue
Multi-valve picture display
Specification
Specification:
Mdoel
SEC-E380SV
SEC-E480SV
SEC-ED540SV
Dispensing desk
Single-desk (Y-axis)

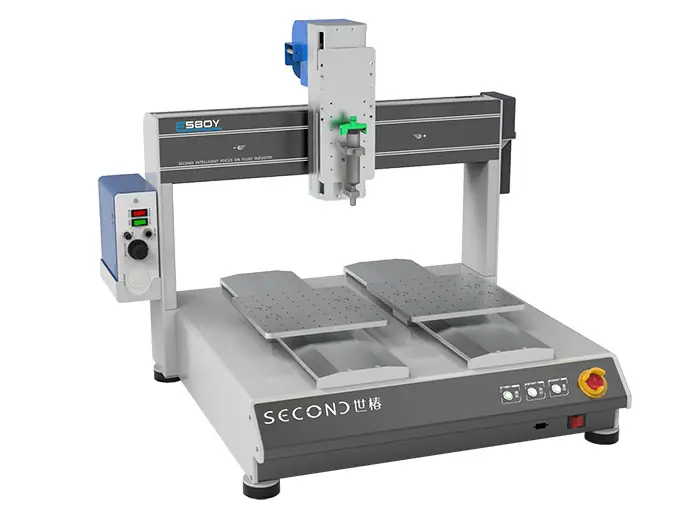

Dual-desk (2 Y-axis)
Dispensingrange
X380/Y380/Z100mm
X480/Y480/Z100 mm
X500,Y1/400,Y2/400,Z100mm
Machine dimensions
L520 x W583x H750mm
L620 x W683x H750mm
L712 x W683x H680 mm
Max payload
Y20kg / Z15kg
Y20kg / Z15kg
Y20kg / Z15kg
Max travel speed
X/Y800,Z100 mm/s
X/Y800,Z100 mm/s
X/Y800,Z100 mm/s
Travel system
Servo motor, lead screw
Positioning accuracy
X/Y/Z:±0.015
Memory storage
120G
operating system
Win7 and above
Control system
Second Fluent
visua system
German HD digital camera
light source
LED red / blue / white ,Coaxial light source
Movement method
Point-to-point, continuous direct selection, arc, 3D curve, etc.
Power input
AC220V 50/60Hz 1.2kw
Working environment
Relative humidity 20-90%, temperature 0-40℃
Machine weight
40kg (est.)
55kg (est.)
60kg (est.)
Advantages/Highlights/Applications
Applications:
Applied to the electronics industry PCB electronic parts fixing and protection, mobile phone, notebook shell bonding, LCD glass, LED dispensing, optical lens dispensing and packaging, auto parts, hardware parts to achieve bonding and fixing
Industry Applications:
Our Factory
OUR FACTORY
Logistics packaging collection
Download
LED Driver, Power-supply
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI, FIP, TIM
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
EMS, Underfill
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Casting, Encapsulating
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
This E-380S Automatic glue dispensing robot works with 400ml 2-part adhesive materials servo mixing and dispensing valve. The machine is using volumetric measurement technology, the AB glues are mixing and dosing out of the cartridge at precise, and uniform speed. The servo-motor-extruder is able to give strong pressure to push the materials out in right volume to mix and dose, works especially good for high viscosity two-component AB materials.

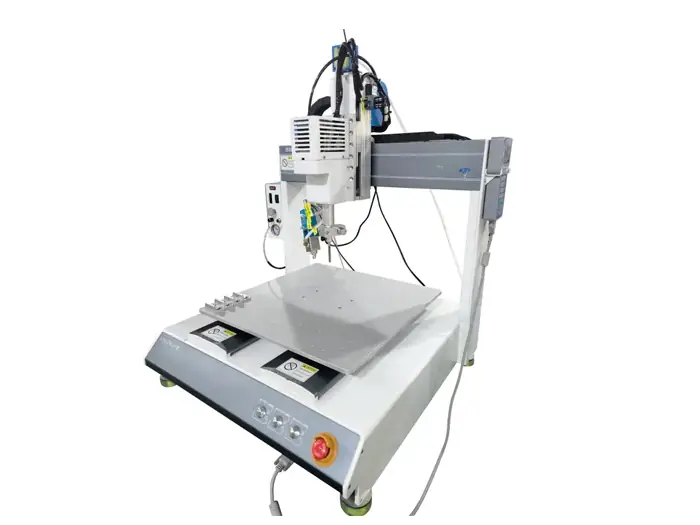

This is an industrial 30cc syringe fluid, adhesive dispensing machine. It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The robot has compacted, but with bigger working range, 380x380x100mm XYZ. It is also flexible to work and match with different glue filling systems, from 5cc syringe, 300cc cartridge, 1 gallons, 5 gallons, and so on. With this design, it is truly realize the dispensing of different adhesives materials for different products. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.
