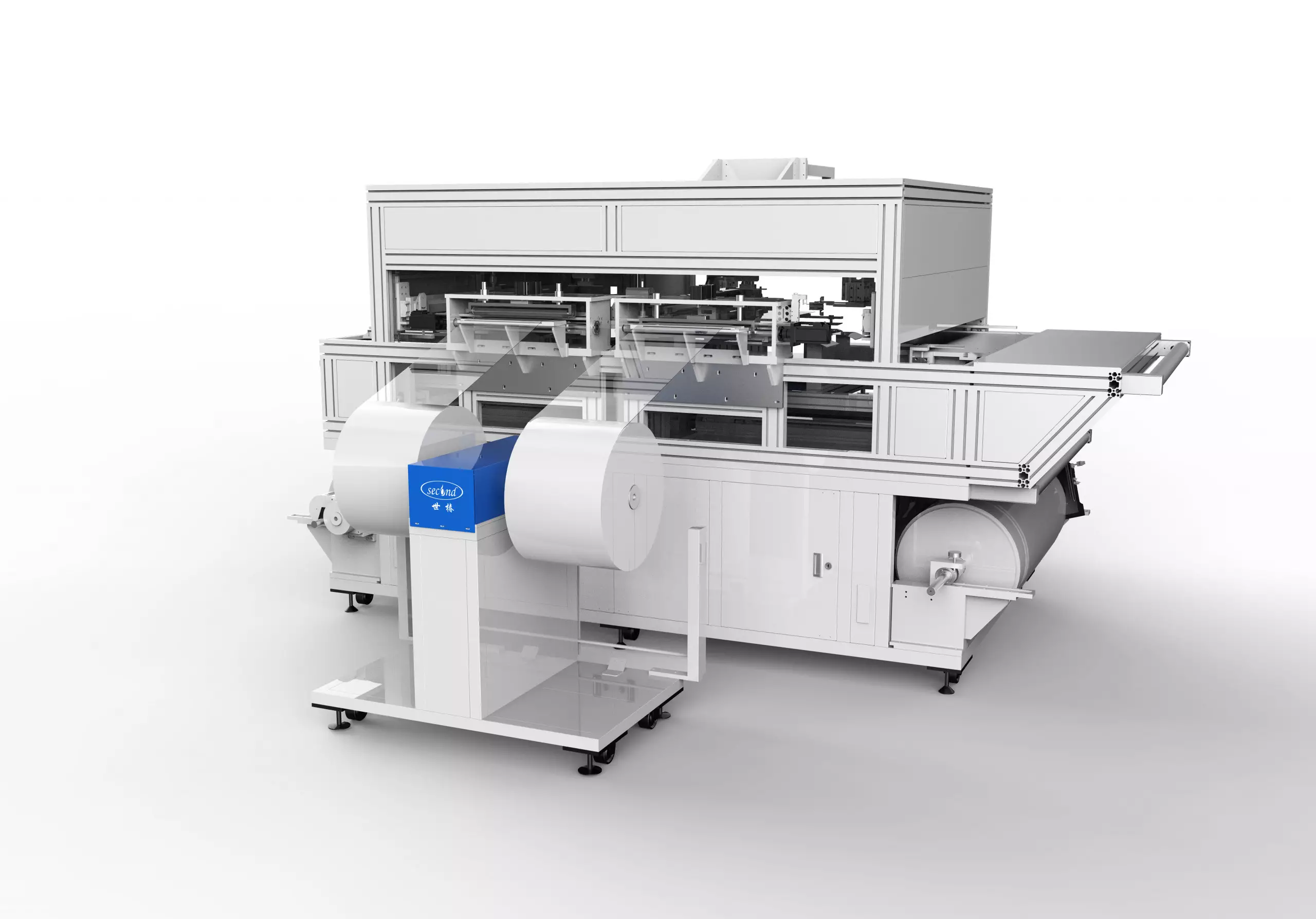

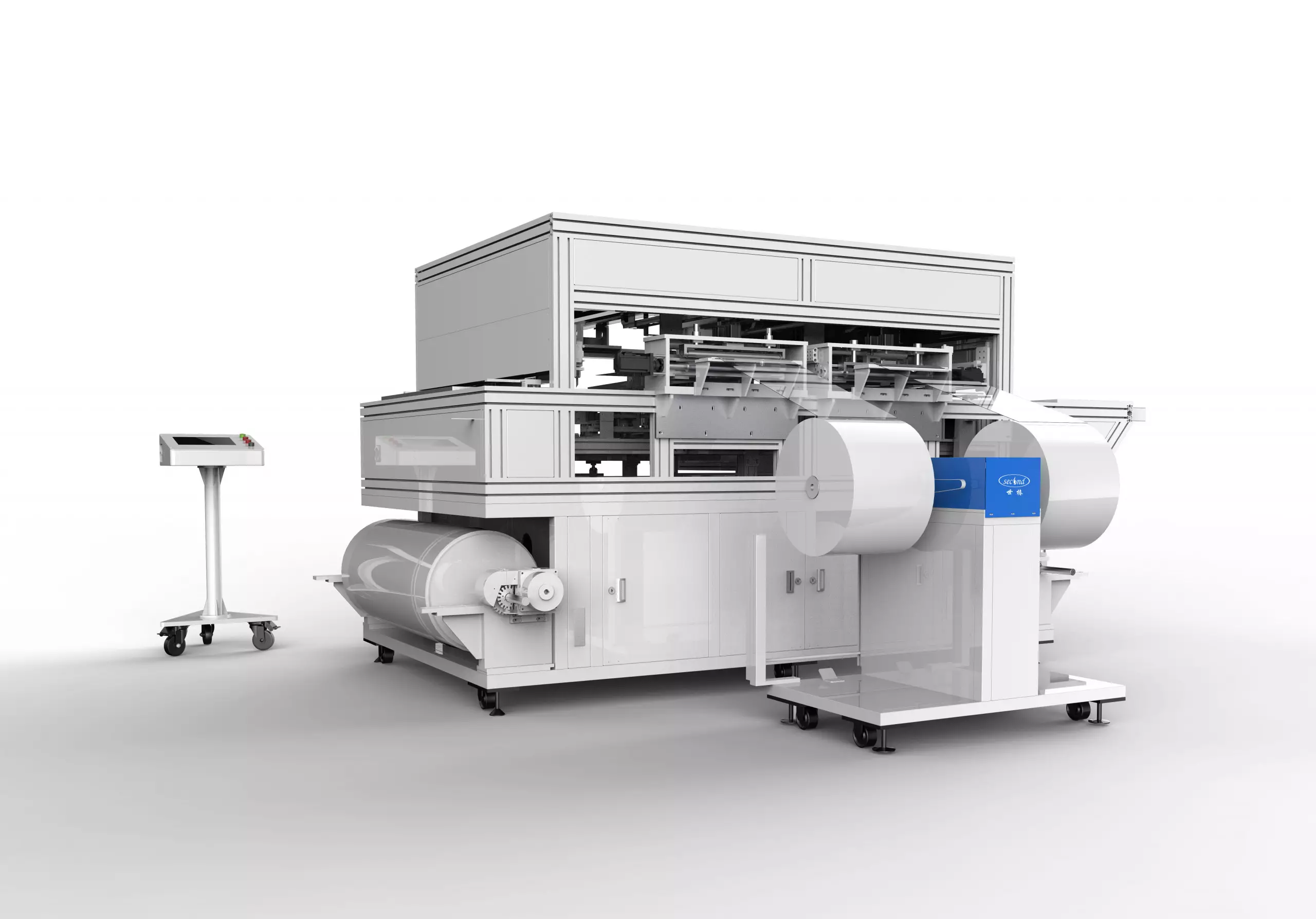

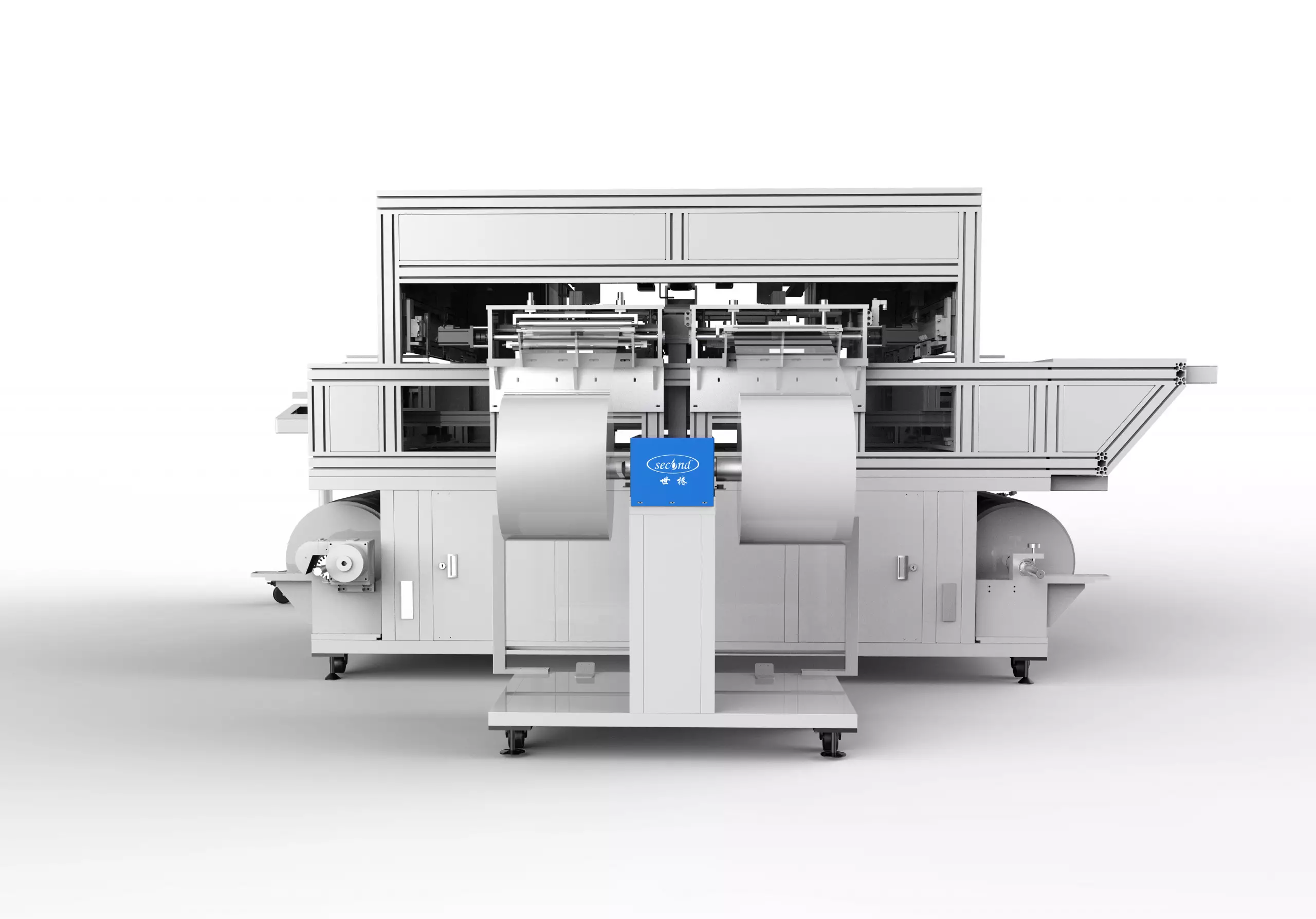

Double-station cross-cutting membrane stacking machine SEC-S70WD-2P
The equipment is suitable for the horizontal/cross-cut folding, and stacking process of household RO cartridge leaf, tricot. It cuts the membrane horizontally for different type of prepping need.
The equipment is suitable for the cross-cut folding, and stacking process of household RO cartridge leaf, tricot. It cuts the membrane horizontally for different type of prepping need.
This is RO and water filter fabricating machines and equipment production floor. From the house to industrial types of RO, they were produce in this department.
The machine is effective and efficient for different type of element withing the ranges.
|
Model |
SEC-S70WD-2P |
|
Suitable RO cartridge sizes |
1810-3313 |
|
Working mode |
Automatic |
|
Material roll diameters |
Φ90-600 mm |
|
Material width range |
950-1200mm |
|
Cutting accuracy |
±0.25 |
|
Material unload method |
Auto unload |
|
Cutting speed |
0-500mm/s |
|
Storage quantity |
≤60片 |
|
Alarm |
Material shortage alarm |
|
Membrane cutting range |
220-320 mm（Able to special customize up to 340mm） |
|
Operating system |
PLC + touch screen |
|
Capacity |
Max speed 500PCS/H |
|
Power consumption |
5.0KW |
|
Power supply |
AC220V/50HZ |
|
Machine dimension |
L3650*W3280*H1870mm |
|
Machine weight |
800KG |
Operator only need to manually load the membrane and spacer (net) rolls on the machine, set the parameters, and the equipment will automatically run to complete the entire production just after one-key startup, the entire process is automatic without any intervention. The machine can use membrane with width 950-1200mm and 220-320mm (340mm size can be customized) spacer (net), automatic fixed-length cutting, automatic folding, and automatic blanking process. The length and position parameters can be set, the efficiency is high, the folding is neatly. With this machine 1 operator can watch multiple sets of equipment at the same time.
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
This is a semi-automatic RO element dispensing and spiral winding machine. It can fabricate RO cartridge elements sizes between 1810-3313.
The equipment is suitable for fixed-length cutting of membranes, spacer, carrier membrane, etc. in the household RO cartridge element production process. It can cut products with a width of 150-1100mm. It is designed for high speed, high accuracy, and high capacity production.
The equipment is suitable for industrial RO cartridge edges trimming process. The equipment uses high-quality materials, stable in use, accurate cutting, safe and durable.
This is a fully automatic industrial RO cartridge element tricot, leaf cutting, inserting, folding machine. It is suitable for preparing the materials for 4040-8040, ie, 4-8 inches.
