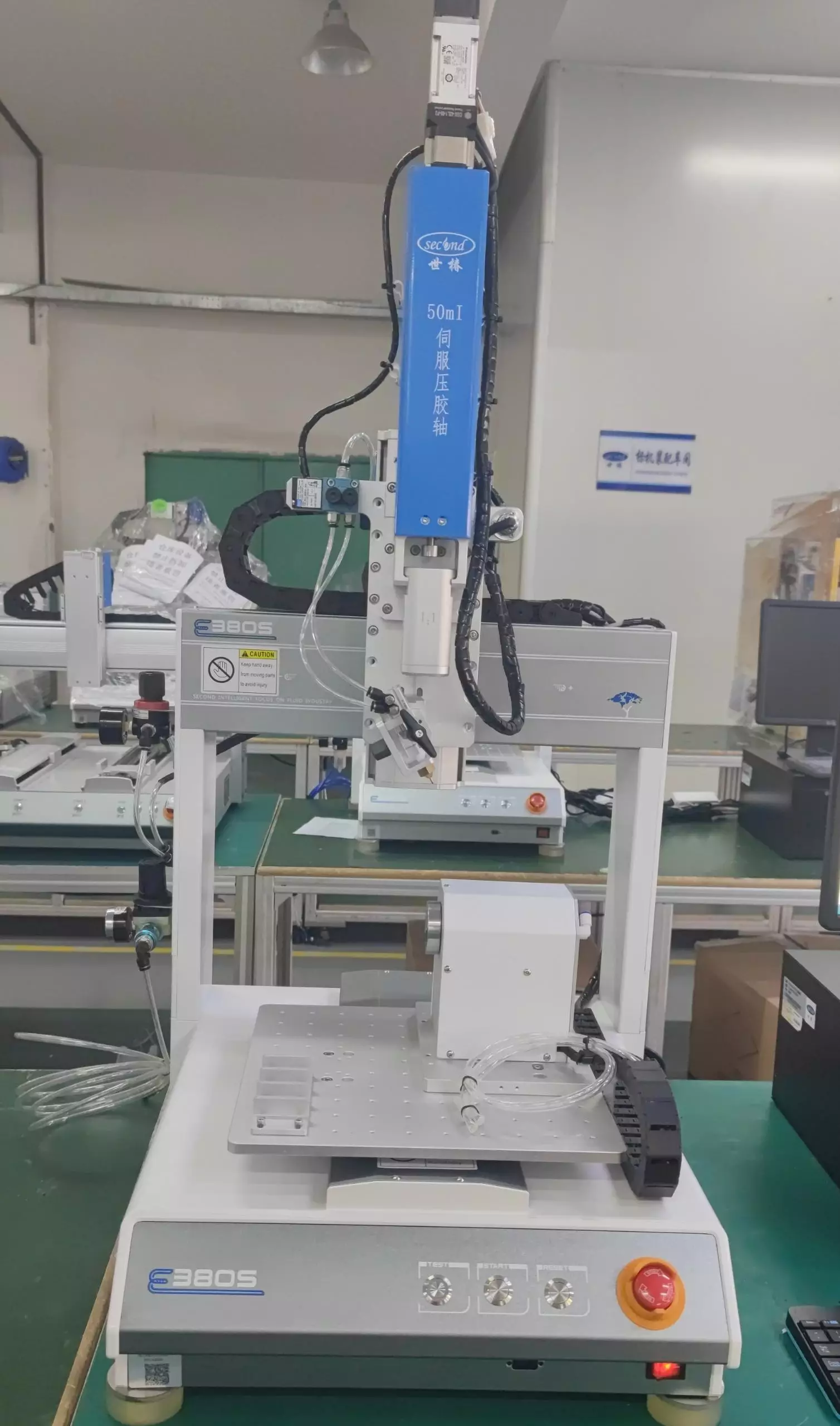

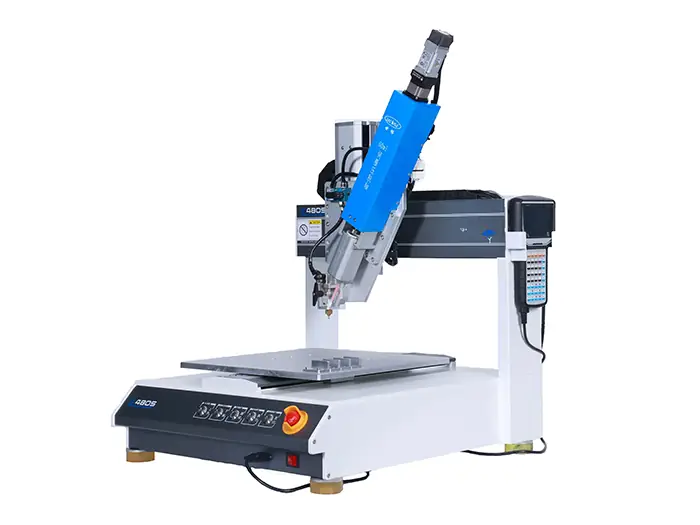

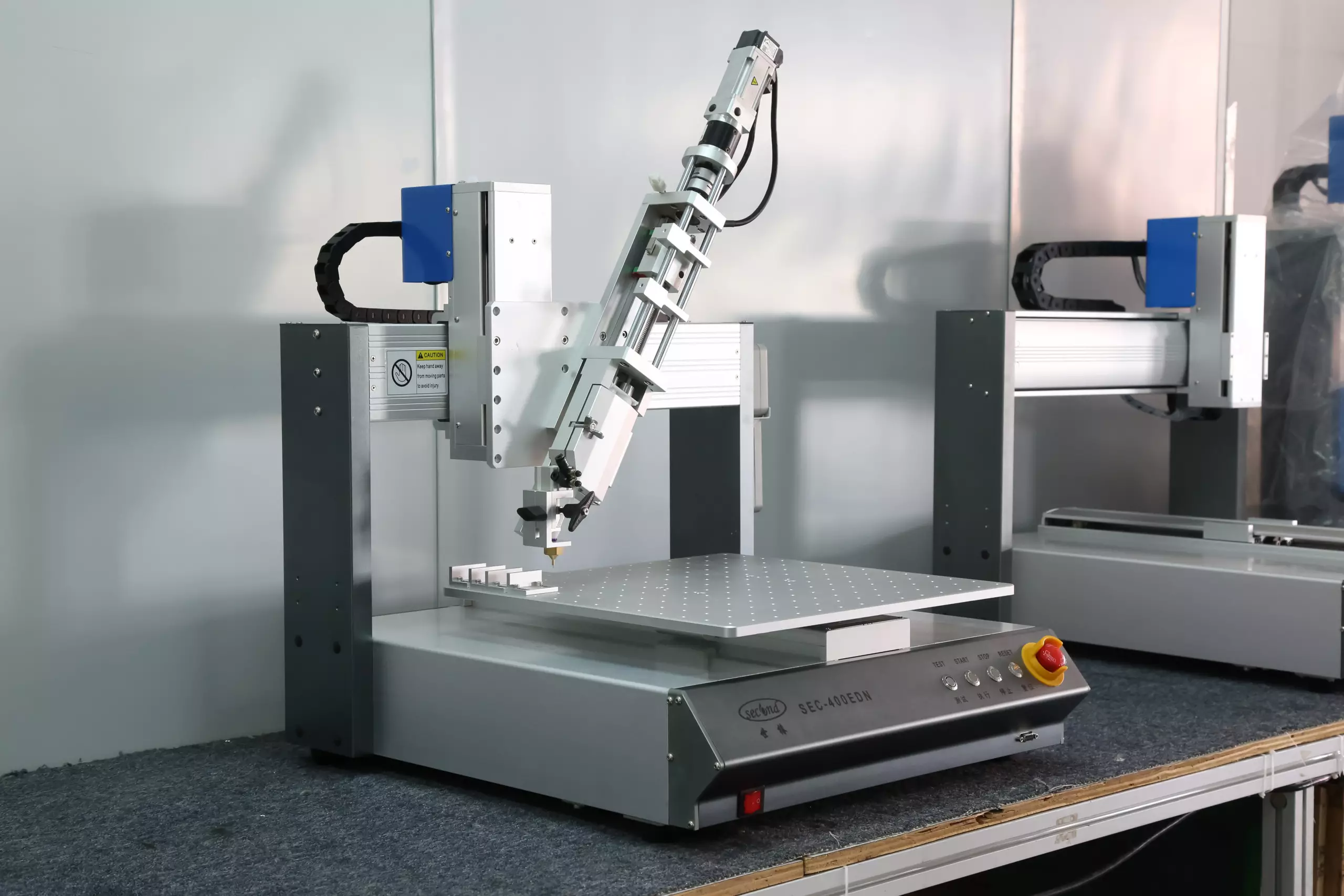

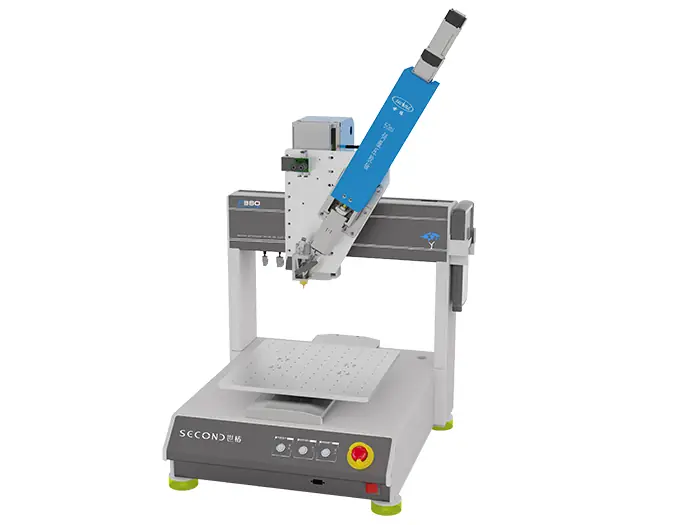

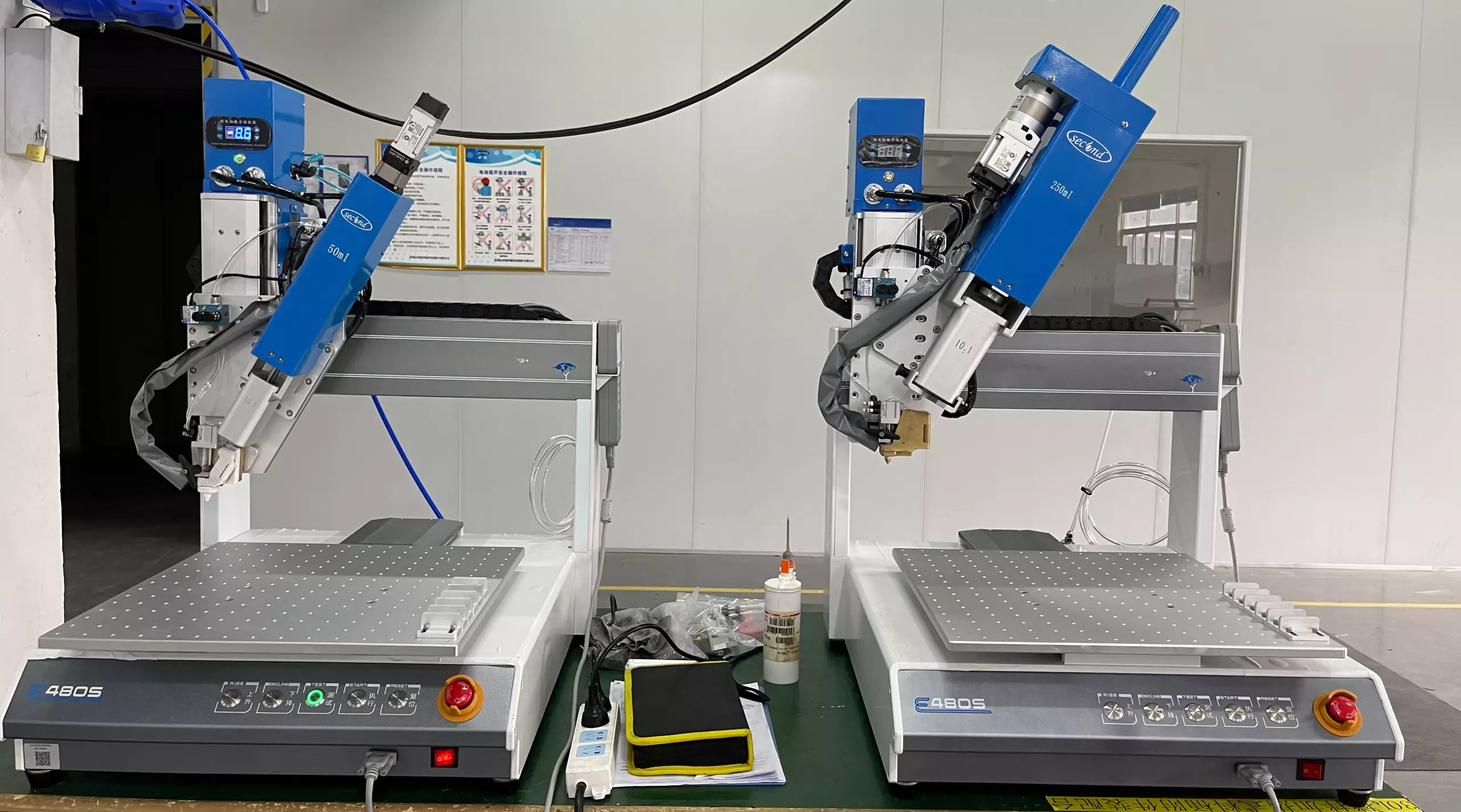

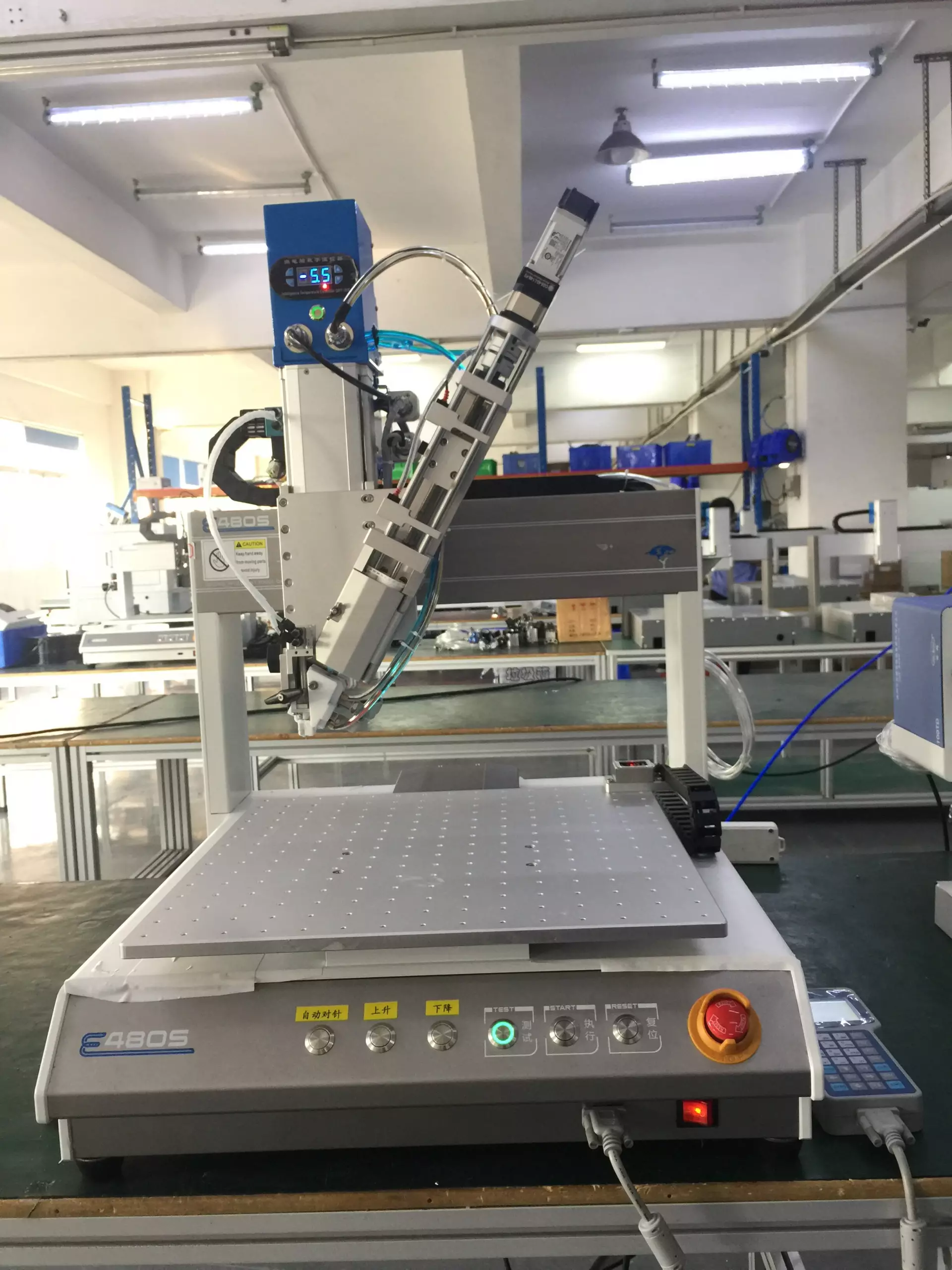

3 axis desktop high precision hot melt uv adhesive E-380S Glue Dispensing Robot 2-part adhesive materials servo mixing and dispensing valve

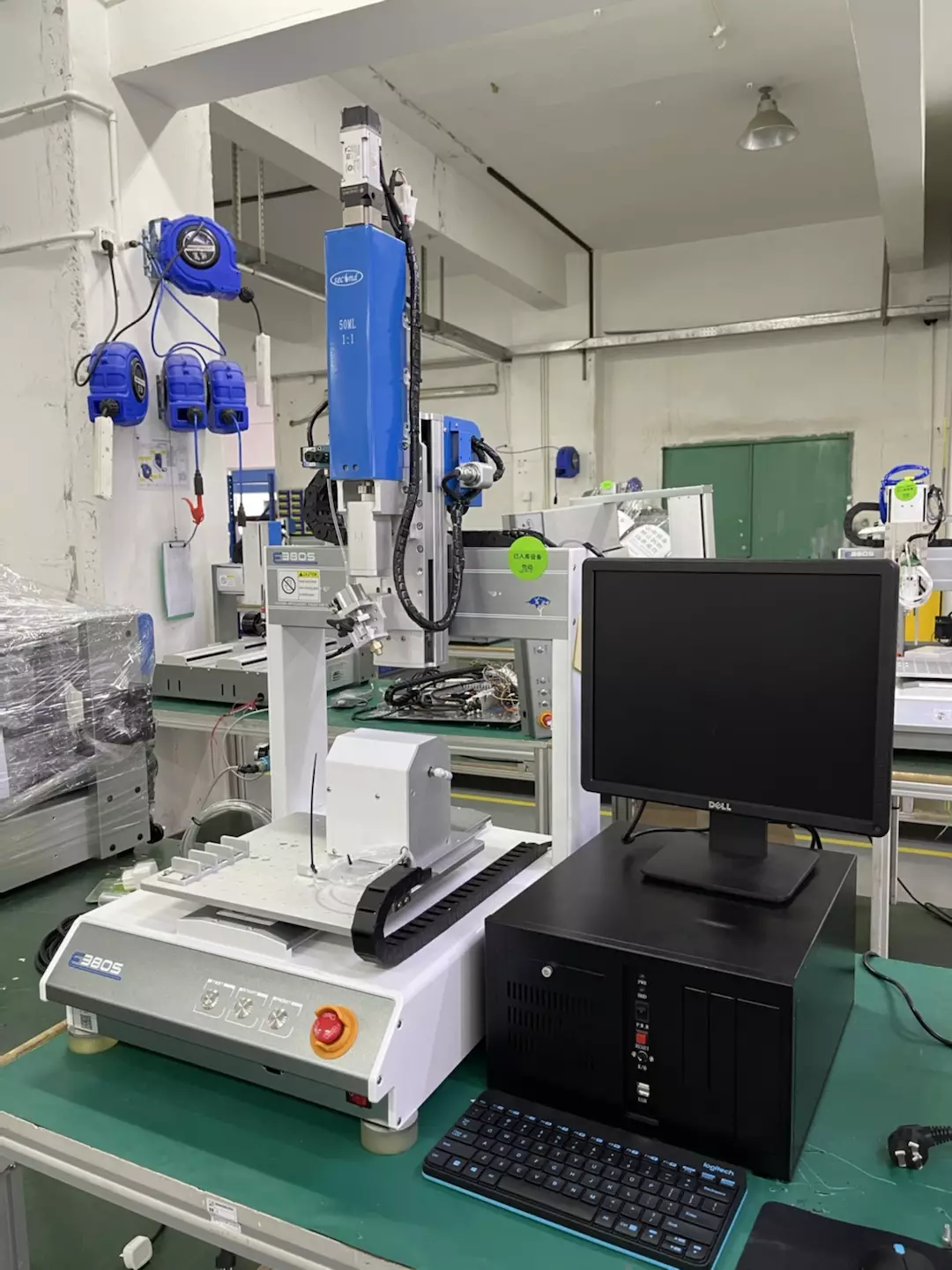

This E-380S dispensing robot works with 50ml 2-part adhesive materials servo mixing and dispensing valve. The machine is using volumetric measurement technology, the AB glues are mixing and dosing out of the cartridge at precise, and uniform speed. The servo-motor-extruder is able to give strong pressure to push the materials out in right volume to mix and dose, works especially good for high viscosity two-component AB materials. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.
The machine body and gantry are built with one-piece aluminum die-casting, strong structure, and stable operation.
Specially designed for high viscosity two-component materials’ automatic mixing and dispensing.
It is a compacted body, but with larger dispensing strokes.
It is using volumetric metering technology, this is able to extrude the AB materials out of the containers at a constant speed and with precise dose.
With precision servo extrusion, the pressure is stable and the speed is uniform, which can effectively eliminate the influence of environmental pressure changes on the glue volume. And since the glue flow rate is faster and more stable, it is ensuring that the glue lines are uniform in thickness, and there is no phenomenon of large and small heads.
The system also come with automatic anti-curing function, which effectively prevent the glue from clogging and blocking the nozzle.
The two-part material cartridge can be customized according to the size of the adhesive glue packaged, such as 50ml, 250ml, 490ml. And also in two-component base on the different ratio.
The dispensing system can chose to work with smart-controller, which can display the current data of dispensing torque, pressure level, automatic speed-switching, and remaining material-level in real time.
It can also add material cooling system to delay the curing time for easy production.
Applicable glue: suitable for 50ml 1:1, 2:1, 4:1, 5:1, 10:1, etc., 250ml10:1, 400ml1:1, 400ml2:1, 490ml10:1 and other double-liquid structural glue. We can also provide customize.
Material
This desktop dispenser setup is suitable for hot-melt, solide glue and similar adhesive material automatic dispensing purpose. Please feel free to send your MPP information; Material, Product, Production details and requirement to us, our engineers will provide free evaluation and solution.
MANUFACTURING
Although the desktop industrial glue dispenser seems to have only XYZ axis, it seems to just has a simple structure, but professional production lines, such as EMS manufacturing factories are generally require very precise, some are up-to nanometer. A professional industrial desktop dispenser may has to travel back and forth for several kilometers and dispense thousands of times, so do not underestimate the quality requirements of a desktop dispensing robot. We provide professional, heavy-duty automatic dispensing machines. “Dispensing is no small matter, our quality starts from the desktop.
Available in stock
Most models of our desktop / benchtop dispensing machines are available in stock for fast delivery, between 10-15 days, we accept URGENT order in case if needed. In an average month, we stock-up about 100 units of standard sizes of the machines. Please contact us now to discuss and arrange.
CASE
Dispensing process:
Commonly used glue
Multi-valve picture display
Specification
Specification:
Model
SEC-E380S-W
SEC-E480S-W
Working range
380(X)╳380(Y)╳100(Z)mm
480(X)╳480(Y)╳100(Z)mm
Y/Z max payload
20kg/10kg
Max travel speed
400mm/sec(XY)/200mm/sec(Z)
Transfer method
Servo motor, lead screw, precision rail
Dosing method
Servo, lead screw
Dispensing method
SMC needle valve
XYZ position accuracy
±0.02mm
Resolution
0.01mm
Memory storage
999 program setups (each program can store up to 65535 spots.)
Operating method
LCD, teach pendant
Transport system
Servo motor
Movement method
4 axis spot to spot, continue line, arc.
I/O
1 input, 4 output (support expansion)
Power supply
AC220V 50/60Hz 0.9kw
Working environment
Temperature 0-40%, humidity 20-90%
Machine weight
约80kg, About 80kg
约95kg, About 95kg
Machine dimension
520*583*645 mm
620*683*645 mm
Advantages/Highlights/Applications
Applications:
PCB electronic parts fixing and protection, mobile phone, notebook case bonding, keyboard dispensing, LCD glass substrate, LED dispensing, optical lens dispensing, chip bonding, hardware parts bonding, electric toothbrush dispensing, etc.
Industry Applications：

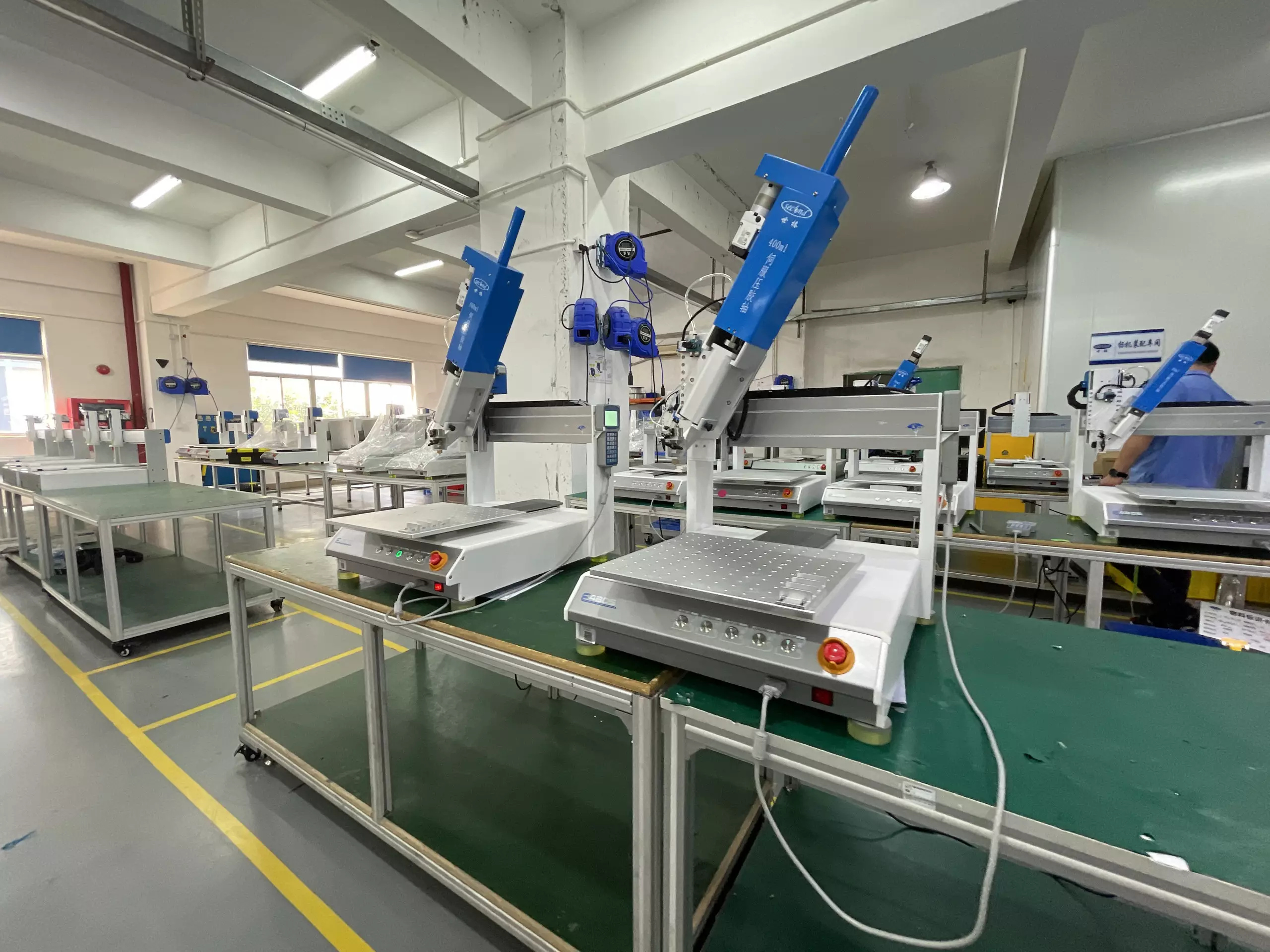

Our Factory
OUR FACTORY
Logistics packaging collection
Download
LED Driver, Power-supply
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI, FIP, TIM
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
EMS, Underfill
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Casting, Encapsulating
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
This is an industrial 30cc syringe fluid, adhesive dispensing machine. It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The robot has compacted, but with bigger working range, 380x380x100mm XYZ. It is also flexible to work and match with different glue filling systems, from 5cc syringe, 300cc cartridge, 1 gallons, 5 gallons, and so on. With this design, it is truly realize the dispensing of different adhesives materials for different products. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.
