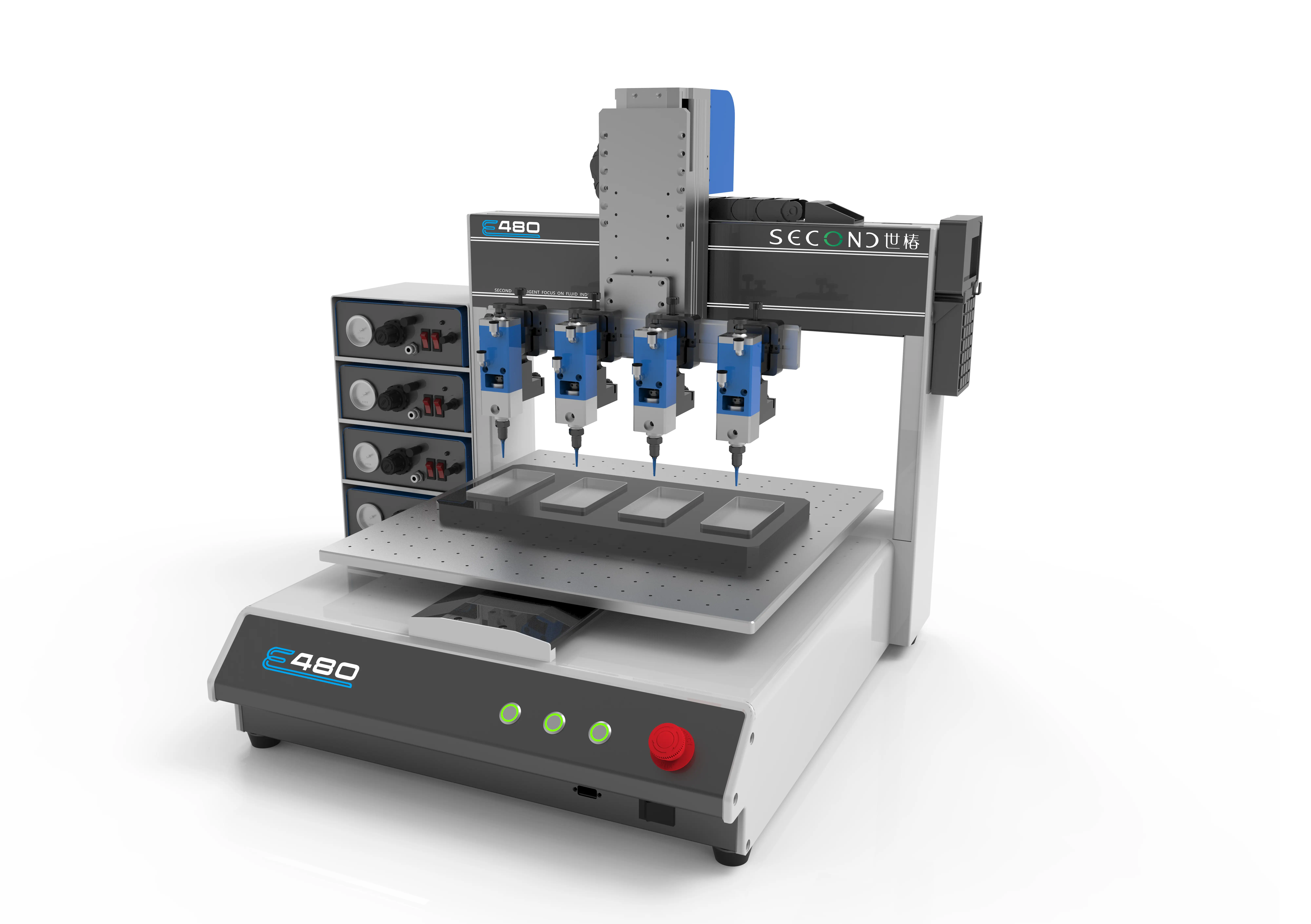

Multi-nozzle automated desktop glue dispenser with dual dispensing desks
Automated high viscosity thermal interface material deispensing machine, Shichun‘s unique control software can follow the set points, lines, circles, arcs and other trajectories
This is good quality fluid, glue desktop dispensing machine, equips with multi-nozzle and dual dispensing desks. It is aim for high capacity production and reliable for heavy duty production works.
dispenser multi-machine for dosing and injection the 2 components resin (Epoxy)
Supporting System
Features
It builds various types of dispensing valves, and controlers
How It Works
The machine can be used to dispense various type of fluid, adhesive materials for fixing or protecting PCB electronic parts. It can also be used for bonding of mobile phone and notebook cases, LCD glass, LED dispensing, Semiconductor sealing, optical lens dispensing, and packaging, automotive parts, hardware parts, and others.
Dispensing process:
Commonly used glue
Multi-valve picture display
Technical Parameter
| Model | E380R |
| Working range | 380(X)*380*(Y)*100(Z) |
| Max payload | 7kg(Y)/3kg(X) |
| Max travel speed | 400mm/sec(XY)/200mm/sec(Z) |
| Transfer method | Stepper motor, belt, precision rail |
| XYZ position accuracy | ±0.025mm |
| Resolution | 0.01 |
| Memory storage | 999 program setup (each program store up to 65535 spots) |
| Operating method | LCD, Teach pendant |
| Motor | Precision stepper motor |
| Movement patterns | 4 axis spot to spot, continue line, arc |
| I/O | 1 input, 4 output (support expansion) |
| Power supply | AC220V 50/60Hz 0.7kw |
| Working environment | Temperature 0-40℃, Humidity 20-90% |
| Machine dimension | Approx. 53KG |
| Machine dimension | 520*583*745mm |
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
We are direct manufacturer.
Generally, we pack our goods with proper wooden box. However, if client has special requirment, we can customize.
Depends on terms and conditions, negotiable.
EXW, FOB,CIF…
Yes, we can produce according to the tested result. We can also product base on your design.
Yes, we will test 100% before delivery.
We keep good quality and competitive price to ensure our customers benefit. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Dispensing machine is an automatic machine and equipment that specializes in controlling fluid and dripping, coating, and potting the liquid on the surface of the product or inside the product. The glue dispenser is mainly used for glue and paint in the product process.
Glue dispensers are generally suitable for small products or electronic components, which are more precise; the products of potting dispensers are generally larger.
As long as it is a fluid with a viscosity within a certain range, it can be operated. The glue generally used in the dispenser includes red glue, hot melt glue, silica gel, grease and so on.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
0.1mm diameter with ultra-fine nozzles (requires low-viscosity fluids).
CE, UL, ISO 9001, and RoHS compliance for global markets.
Yes. Dual-fluid models with 1:0.8~1:1.2 mixing ratio control are available.
3C electronics, EV batteries, LED packaging, solar panels, and biomedical devices.
This desktop dispenser equips with 1.5 gallons material feeding tank, it suits for medium and low visocisty material dispensing purposes. The tank can store higher volume of material, so to avoid frequent refill or replace. It works with E380 series of robot, this robot was built with one-piece aluminum die-casting body, durable and precise for professional and heavy duty works.
This E-380S dispensing robot works with 50ml 2-part adhesive materials servo mixing and dispensing valve. The machine is using volumetric measurement technology, the AB glues are mixing and dosing out of the cartridge at precise, and uniform speed. The servo-motor-extruder is able to give strong pressure to push the materials out in right volume to mix and dose, works especially good for high viscosity two-component AB materials. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine.
This is a hot melt adhesive dispensing machine equips with 10 liters material feeding tank. The tank can store 10 liters of material in total, can melt hot melt chips, resin, sticks, blocks, and other similar adhesive materials. It works with one-piece aluminum casted Cartesian robot body, it is strong structure and stable operation. The machine has compacted, but with bigger working range, 380x380x100mm XYZ. The dispenser equips with ceramic heating barrel, and one pre-heater for effectively and efficient work. The heating controller works with a digital temperature control, can be accurately controlled to ± 1 ℃. This is professional, heavy-duty industrial adhesive fluid, glue automated desktop dispensing machine. Besides 10 liters tank, we also provide different volumes of hot-melt dispensing system, such as 30cc, 100cc, and others.
DH Series Inline dispensing machine
● One-piece mineral casting, ultra-high precision and ultra-stability
● Powerful expansion capabilities for ion cleaning, dispensing, testing, UV exposure, etc.
● Extensible
● Powerful feature
● Rich Configuration
● smart
● Wide range of application
Rich product variety:
Stand-alone platforms, gantry in-line platforms, cantilever in-line platforms
Diversified application processes and modules:
From 5ML to 200L packaging glue, from various needle rotary dispensing to various
product rotary dispensing, from simple syringe dispensing to metering dispensing and non-contact jet dispensing.
Powerful system features:
From three-axis applications to five-axis applications, from simple automatic needle alignment to
complex 3D scanning and path guidance
