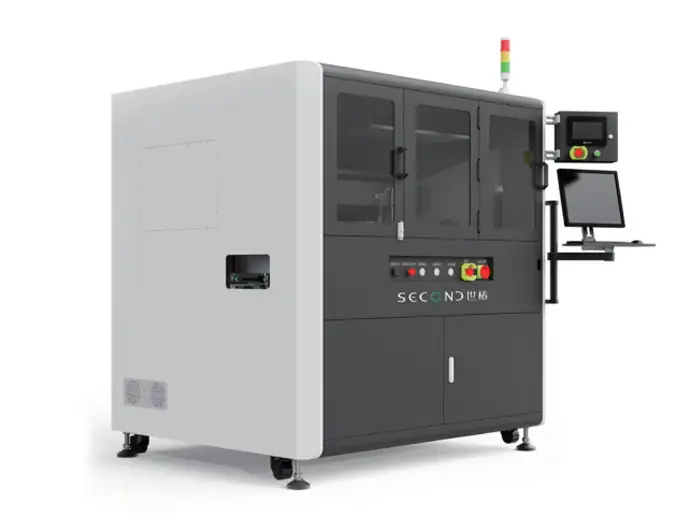

EC series online double-station five-axis glue dispensing equipment
● Powerful spatial dispensing trajectory motion capability
● Mineral casting platform, with higher precision and stronger stability
● Powerful expansion function, further realizing multi-directional and multi-angle dispensing process
The online dual-station five-axis dispensing platform has a powerful motion control system and supports various standard curves, arbitrary axis straight lines, space arcs, space spirals, space ellipses, space involutes, and space spline curve interpolation. It can be applied to dispensing of round and special-shaped products. The equipment has the functions of Mark point positioning and edge positioning, automatically calculates the center position of the product, corrects and compensates the movement of each axis, and can automatically identify the phenomenon of product omission and misplacement. The modular design and flexible matching meet the needs of contact dispensing and non-contact dispensing processes, and has a wider application.
● Five-axis basic platform
● Vision system
● Multifunctional dispensing control system based on industrial PC
Platform optional function configuration :
• 3D scanning
• Needle correction
• Dispensing Inspection
• Level-detector

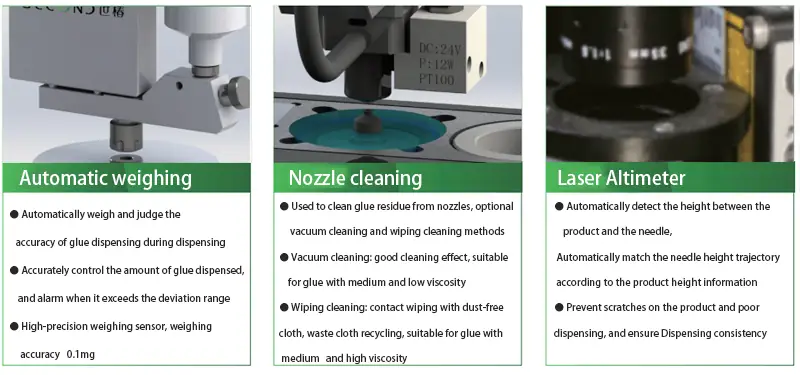

• Glue weighing
• Needle cleaning
• Laser altimetry
• Information sacnning
• AOI inspection
• Rail heating
• automatic double valve
• Exposure Curing
Commonly used glue
Multi-valve picture display
| Model | SEC-EC200Z-AL |
| Platform structure | Dual-station five-axis platform |
| Effective travel of the robot | X1230/Y880/Z200 mm |
| Appearance size | L1700 x W1520 x H1800 mm |
| Maximum load | Z axis: 5kg |
| Transmission mode | X/Y/transport axis: linear motor module Z axis: servo motor + ball screw |
| Maximum idle speed | X//transport axis (linear motor): 1200mm/s Z axis (servo + screw): 200 mm/s |
| Maximum acceleration | X/Y/transport axis (linear motor): 1.5G Z axis (servo + screw): 0.5G |
| Positioner configuration | R1/R2 axis: DD motor |
| Positioner rotation accuracy | Rl/R2: ±30Arc sec |
| Positioner repeatability accuracy | R1/R2: ±2.5Arcsec |
| Positioner load | 3kg |
| Robot repeatability accuracy | X/Y/transport axis (linear motor): ±0.003mm Z axis (servo + screw): ±0.015mm |
| Visual camera | German high-definition digital camera |
| Light source | LED red/blue/white light source, coaxial light source |
| Operating system | Win7 and above |
| Control system | Second Fluent |
| Input voltage | AC220V 50/60Hz 2.5kw |
| Input air source | 0.5-0.8Mpa |
| Working environment | Relative humidity 20-90%, temperature 0-40°C |
| Weight | About 1800kg |
Our two-component In-line automated vacuum potting system machine is often used in the LED driver, power supply dispensing, with this encapsulated process, the product is heat dissipation, moisture-proof, waterproof, and flame retardant.
EMI and FIP dispensing techniques are widely use in the telecommunication and transportation industries. With the rapid development of communications, electric vehicles, and personal wireless electronic gadgets, these products are often required to connect and interact between each others. However, the signals sometimes interfere with the others, so need to be filtered or shielded. To improve and control the electromagnetic signals, engineers can redesign the entire product, or it can apply EMI shielding materials to filter or shield. Shielding is relatively economical and easy to achieve, it is done basically by adding shielding gasket. Our dispensing machine can directly produce different sizes of triangular shapes or D-shape filtering gaskets, these gaskets can appear in different shapes and is directly applying to the products. The dispensing machine equips with special adhesive material dispensing valve to apply directly, and without post-processing. The machine is intelligent, precise, but user-friendly, without complicated installation, or setup. In addition to the above functions, this type of dispenser equipment can also dispense FIP adhesive glue, and thermal interface material. The equipment is not only precise, but also multi-purpose, which is convenient for various type of storage battery, and electronic product applications.
Dispensing equipment are important for various EMS (electronic manufacturing service) productions. Electronic product processing service industry is indispensable to modern life, because many products are now equips with electronic and become more intelligent. These products are becoming more and more complex, precise and tiny in size. And for consumer product, their production volume also in large production and fast turnover. Therefore, it is necessary to use automated equipment, or even fully automated production lines to produce to meet apply the materials. With the automatic dispensing robots, it is possible to catch up with the capacity and demands. And more importantly, to improve economic efficiency to maximize economic of scale, and so to reduce unit prices to enhance competition. Very often in this type of production, the uses of dispensing machines or equipment is inseparable. In this production process, the glue dispenser is usually used to assist in the functions of fixing, connecting, protecting, dissipating heat and so on between parts and components. Our glue dispensers can directly add the relevant materials to the specified positions accurately and quickly as required.
Two-component materials’ encapsulating and casting production are important to enhance electronic products. No matter if your product is for business selling, or for household consuming, nowadays everyone has higher quality requirements and expectations. Furthermore, the protection of the product is not only to optimize the function of the product, but also to prolong the service life of the product, thereby reducing production waste. In electronic products the parts and components are generally composed of different metals and sensitive chemical combined materials. The more precise the product, the more high-tech the product it is, with this, it requires higher protection, so that it can be optimized according to the requirements. In doing so, it can state of long-term operation without being affected by the surrounding environmental conditions. Our two-component potting machines are specially designed for this production, as well as our vacuum encapsulating and casting potting machines. These machines can accurately degas the two-component adhesive materials base on the ratio, meter, mix, and homogenously and continually to the products. These materials cannot be applying manually, they need to use machines, which can be supplied in large quantities, continuously, accurately, and for long time of works. With the materials provided by such equipment, the product will have better protection, heat dissipation, waterproof, moisture-proof, encryption (to protect the circuitry design, and components used).
