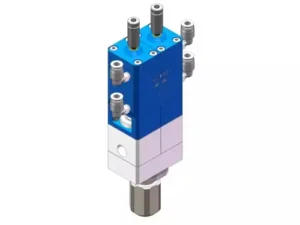

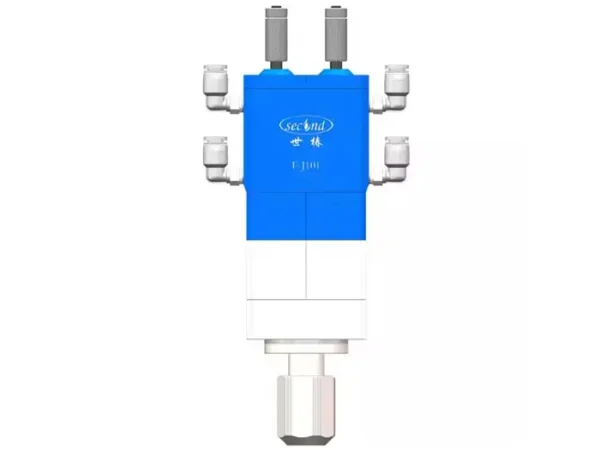

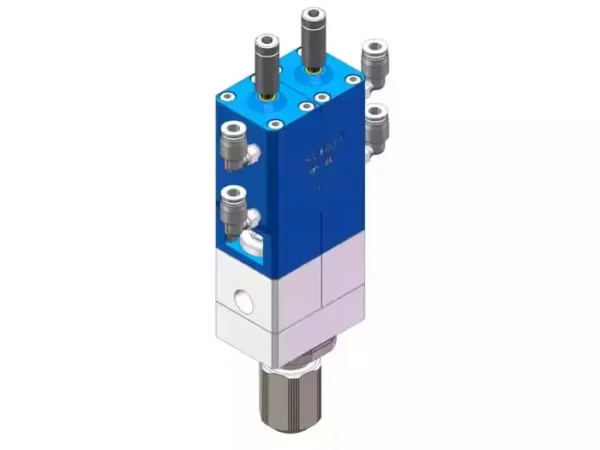

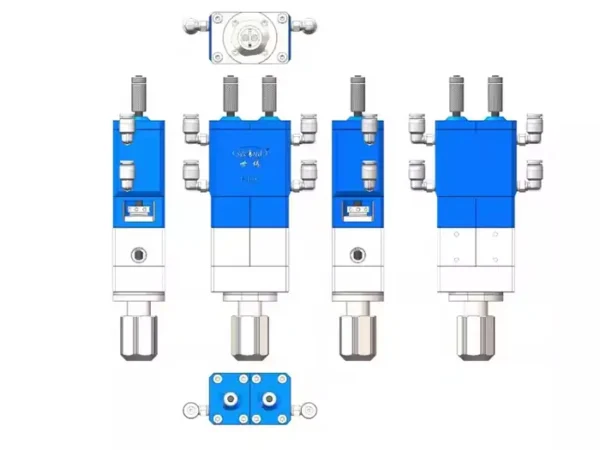

Second Double liquid static glue dispensing valve

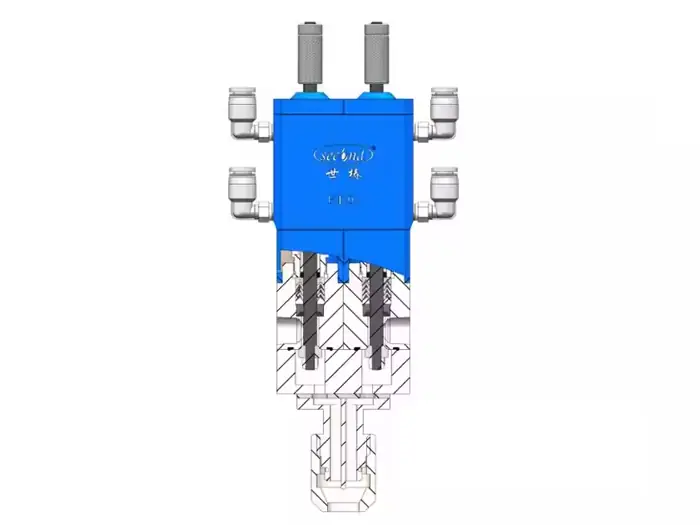

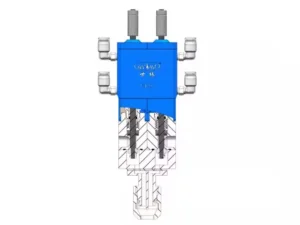

F-J series two-liquid static glue dispensing valve is a two-component back-suction static mixing switch valve, which acts on the switch and mixing of two-component glue in the flow channel. It uses a back-suction switch to control the two glues A and B to enter the mixing tube, and then apply them to the product after static mixing! It is suitable for a variety of two-component mixing and coating processes.
Features
● It acts on the switch and mixing of two-component fluids in the flow channel, using pull-back switch and static mixing.
● It controls the A and B liquids to enter the static mixing tube for mixing at the same time.
● It is suitable for medium and low viscosity fluids.
● It can be connected to various types of static or dynamic mixing tubes and is suitable for various forms of dual-liquid dispensing equipment.
It is suitable for various hybrid ratio glue and adopts a suction mode, and the phenomenon of brushed, ticking, leakage and other phenomena.Simple operation and convenient installation.
It is suitable for various hybrid ratio glue and adopts a suction mode, and the phenomenon of brushed, ticking, leakage and other phenomena.
Simple operation and convenient installation.
● It acts on the switch and mixing of two-component fluids in the flow channel, using pull-back switch and static mixing.
● It controls liquid A and liquid B to enter the static mixing tube for mixing at the same time.
● It is suitable for medium and low viscosity fluids.
● It can be connected to various types of static or dynamic mixing tubes, and is suitable for use in various forms of dual-liquid dispensing equipment.

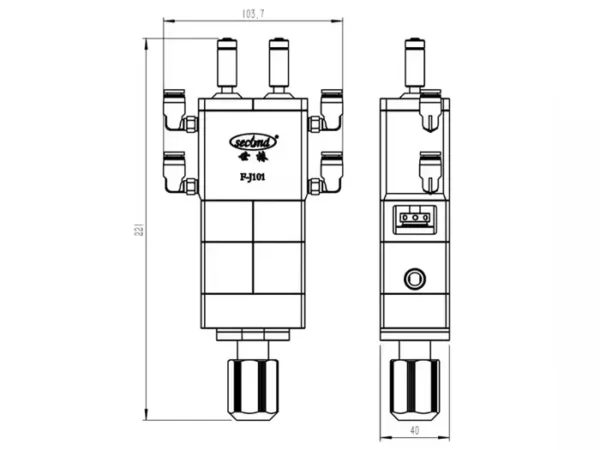

Specification
| Item | Parameter |
| Model | F-J101 |

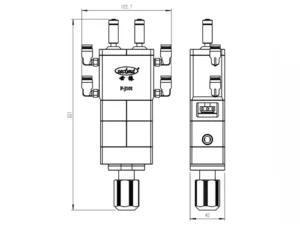

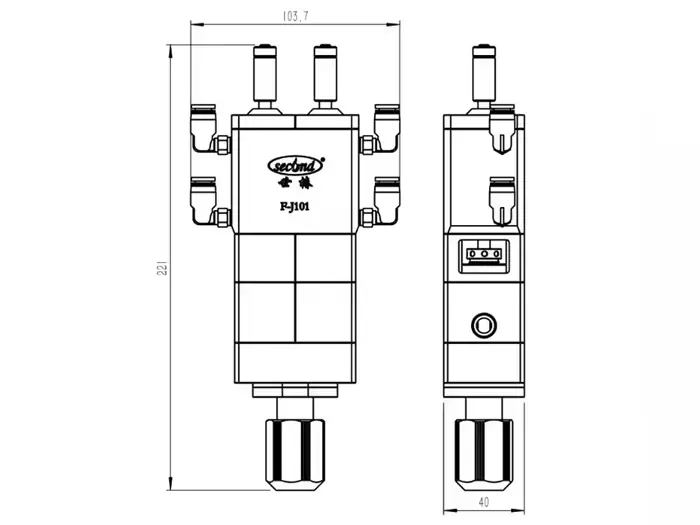

| Dimension | 230*105*40mm |
| Weight | 1700g |
| Driving method | Pneumatic |
| Inlet size | Rc1/4 |
| Channel material | Stainless steel |
| Stem material | Stainless Steel + heat treated + lated/ceramic |
| Applicable viscosity | 0-100000cps |
| Sealing material | NBR+PTFE+PA |
| Piston drive air pressure |
0.2~1Mpa |
| Inlet pressure | ≤0.7Mpa |
| Flow rate | 15L/min(water/1Mpa) |
| Seal life | ≤300000 times |
| Operation frequency | ≤14 times/s |
Double liquid static glue dispensing valve can be applied to the following fields:
● Automation
● Electronics
● Mechanical engineering
● Automotive electronics
● Medical
● Pharmaceuticals
● Information technology
● Consumer electronics
Suitable for dispensing substrates of various shapes and surface materials.
Durable Construction: Made of ultra-high hardness stainless steel SUS440C, the dispensing valve is durable and can withstand the rigors of continuous use in industrial environments.
Easy Integration: The dispensing valve is designed to be easily integrated into your existing SECOND AB 2K two-part component dispensing and filling machine, minimizing downtime and improving production efficiency.

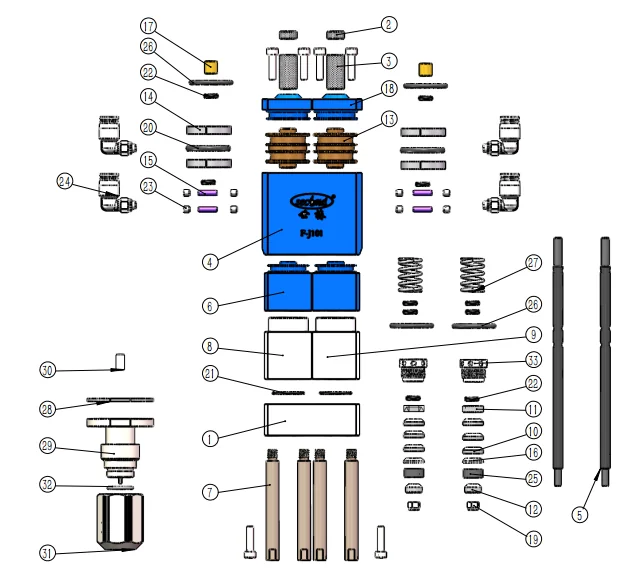

Maintenance Friendly: The modular design of the valve allows for quick and easy disassembly for cleaning and maintenance. Reduces reliance on special tools. Avoids the need for long downtime.
Glue and craft：
F-J101 Double liquid static glue dispensing valve, using the most advanced dispensing technology, can achieve extremely high precision dispensing, especially suitable for high viscosity and ultra-high viscosity media. It can be widely used in a variety of different liquids,
such as:
● SMT adhesive
● Filled conductive adhesive
● Conductive silver glue
● Solder paste
● Flux
● Silicone
● LED phosphor
● Bottom filler
● Hot melt adhesive
Two parts silicone, resin, epoxy, polyurethean and other fluids with big tanks or barrels of materials.

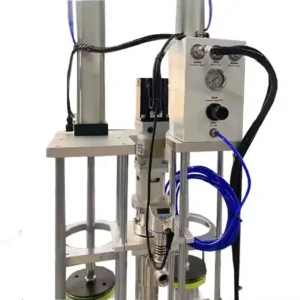

This machine is designed and built for the two components (2 parts) materials that need to be mixing together base on the ratio automatically. The machine equips with CNC automatic dispensing robot, which able to perform automatic dispensing efficiently and effectively without operator. The system comes with two tanks (15, 30, or 70 liters as the standard, option for custmization).
